Measuring & Fitting Guide

Measure twice, order once.

There are two different ways to fit the blinds, either within the existing window reveals or recessed behind the internal vehicle plywood panel for the frameless look.

This guide explains how to measure and fit the blinds for both fitting styles.

Blinds in manufacturing
Manufacturing setup

Option 1 : Within Window Recess

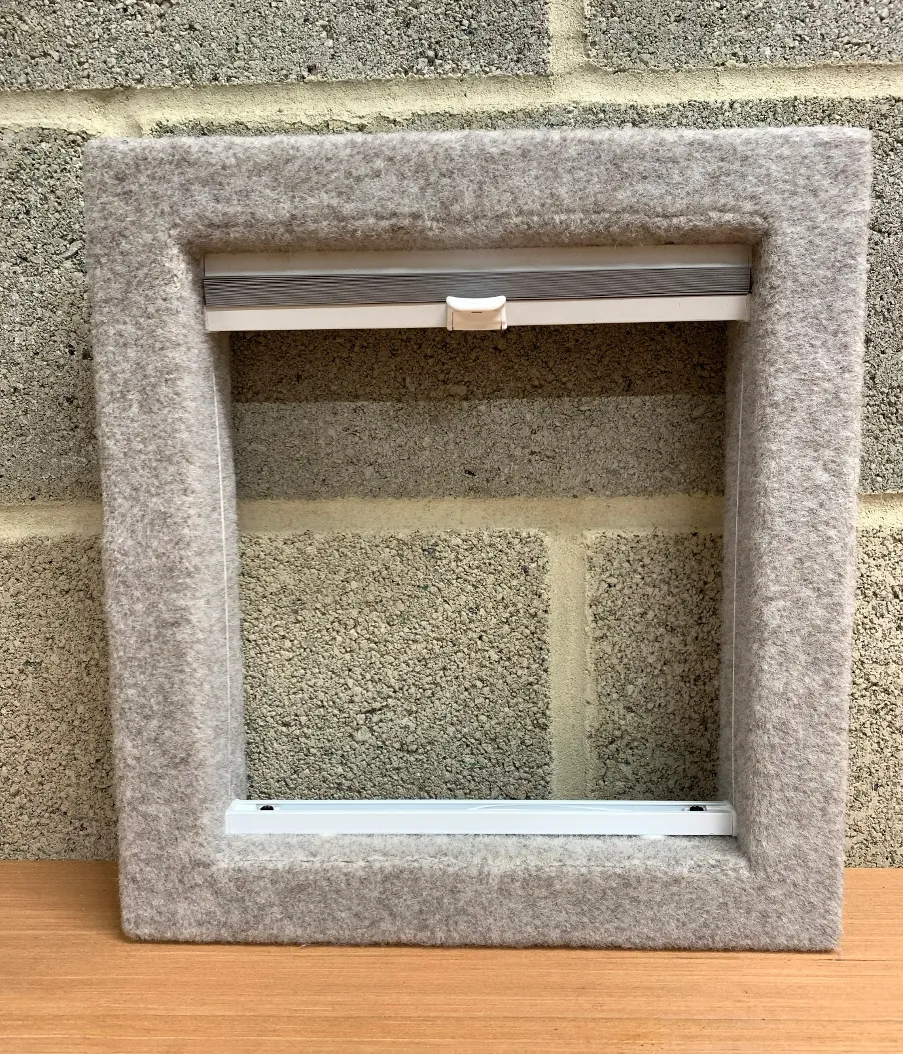

Blind Open

For the blinds to fit within the window reveals, you would simply need to measure the width from one side to the other and the height from top to bottom.

Blind Open

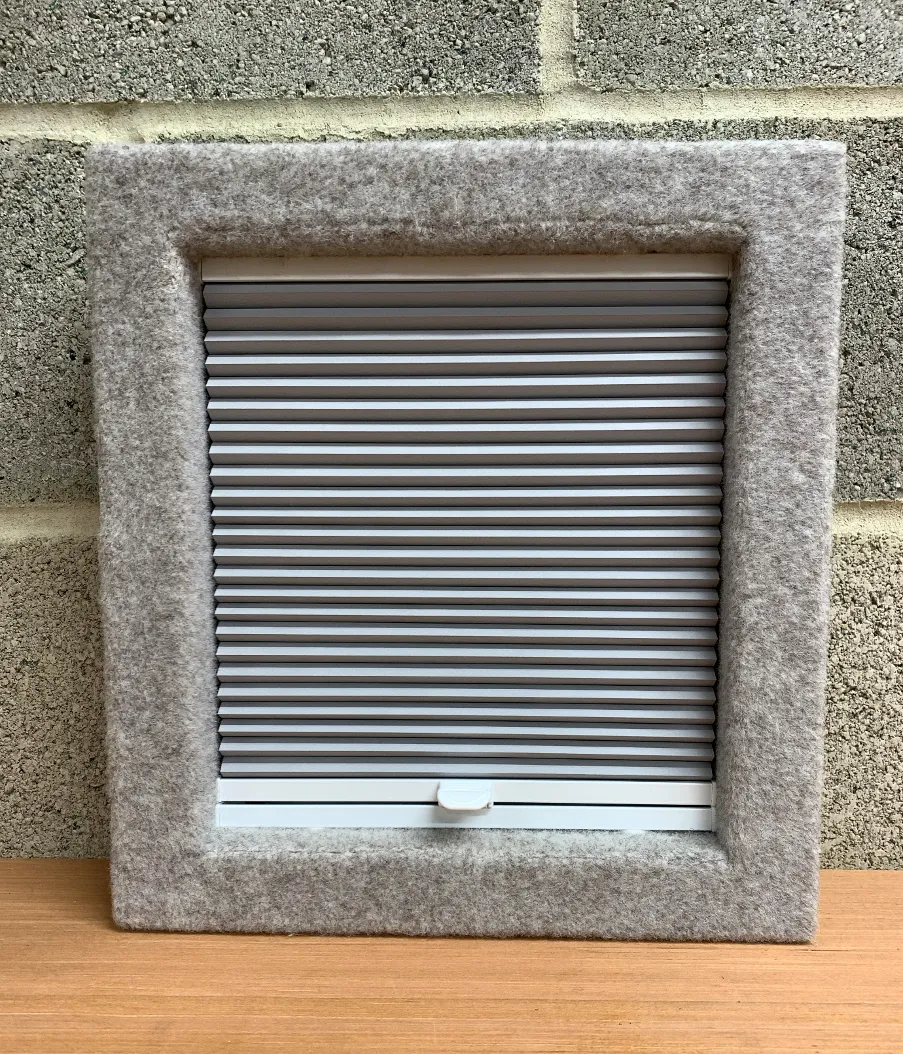

Blind Closed

Option 2 : Recessed Behind Panel

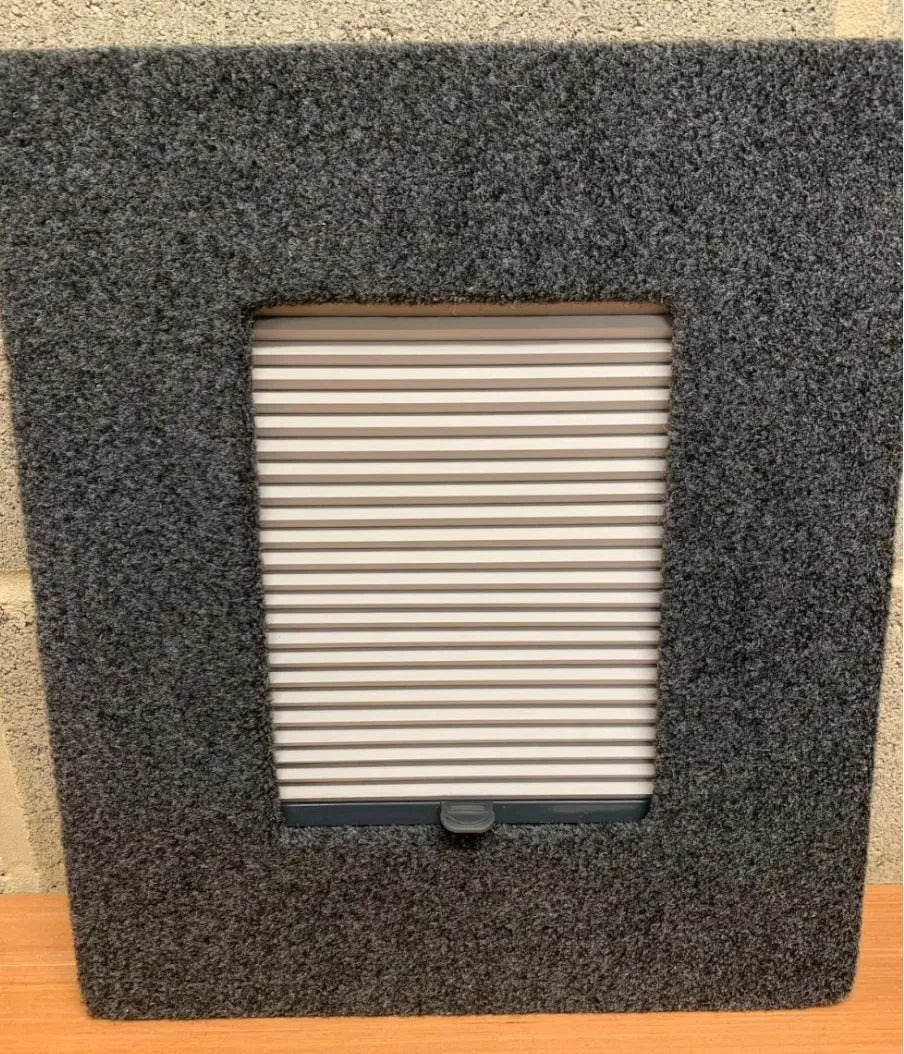

1. Recessed within Plywood Panels

For the blinds to be recessed behind the internal vehicle plywood panel, to create a frameless look and to conceal the cords.

1. 1. Recessed within Plywood Panels

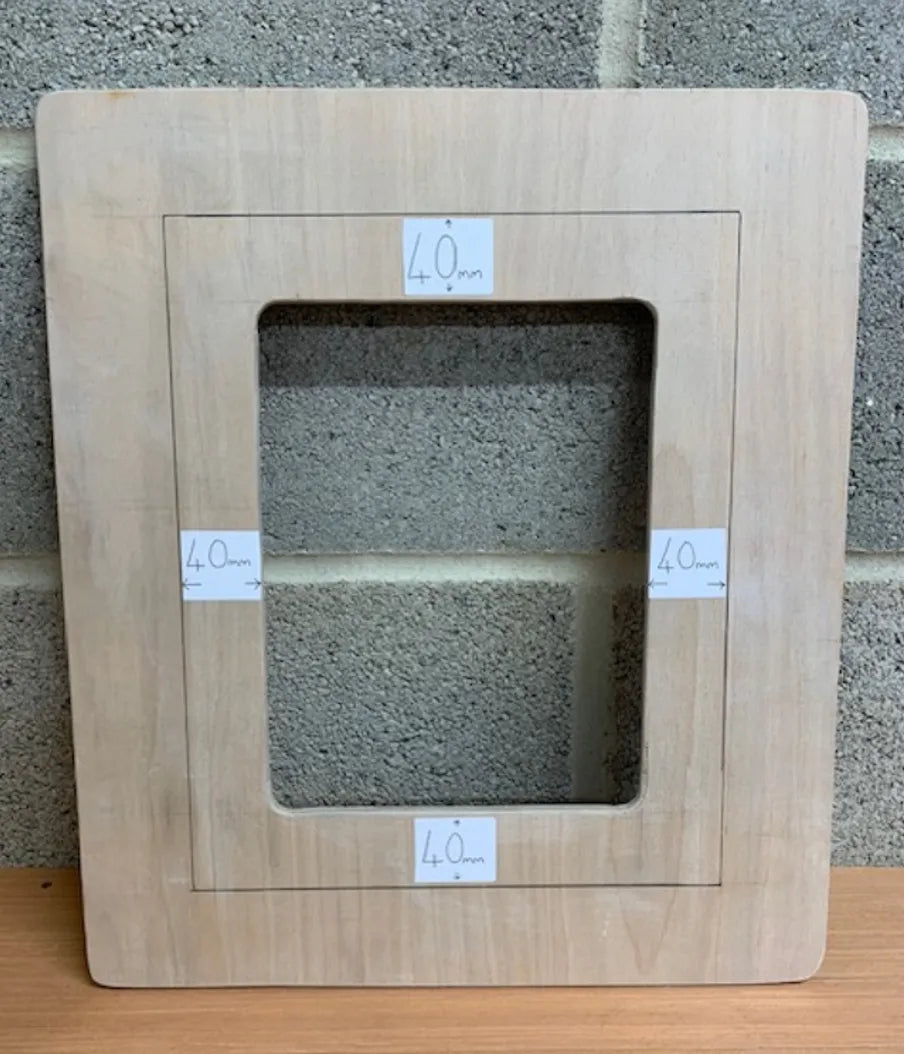

2. 2. Measuring

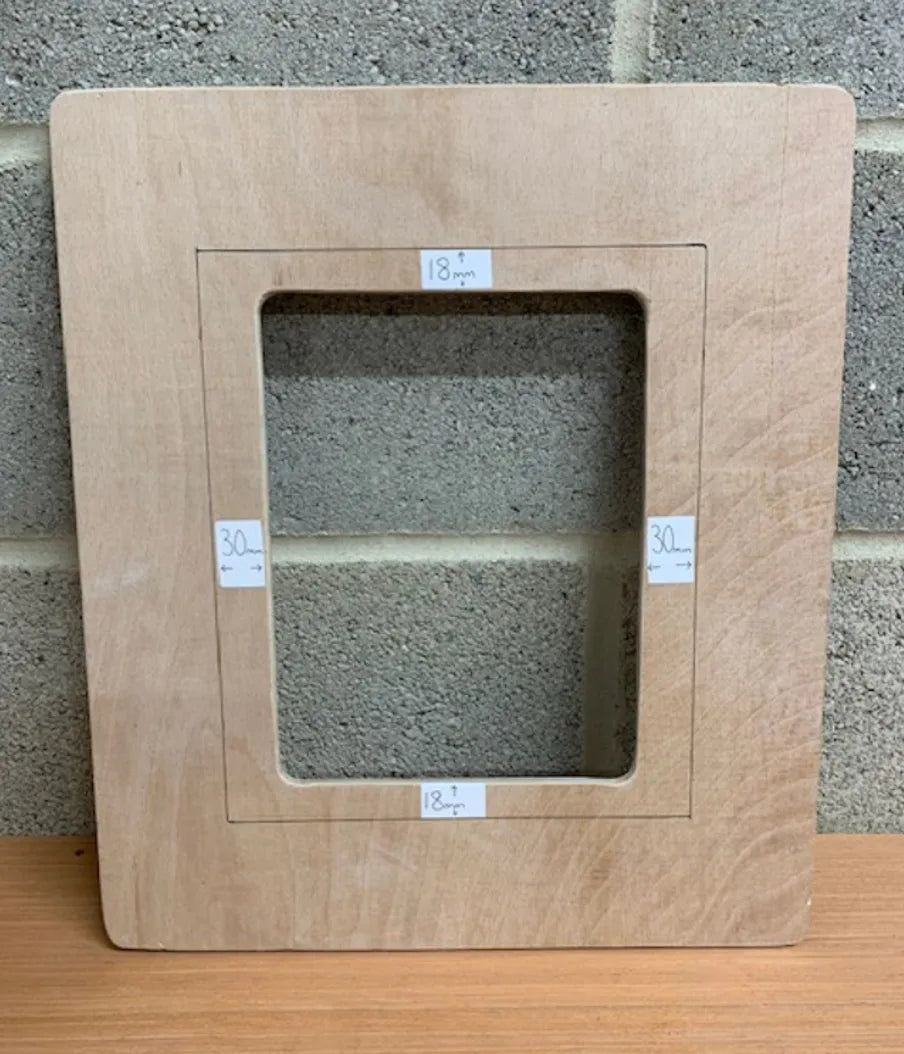

3. 3. Overlap

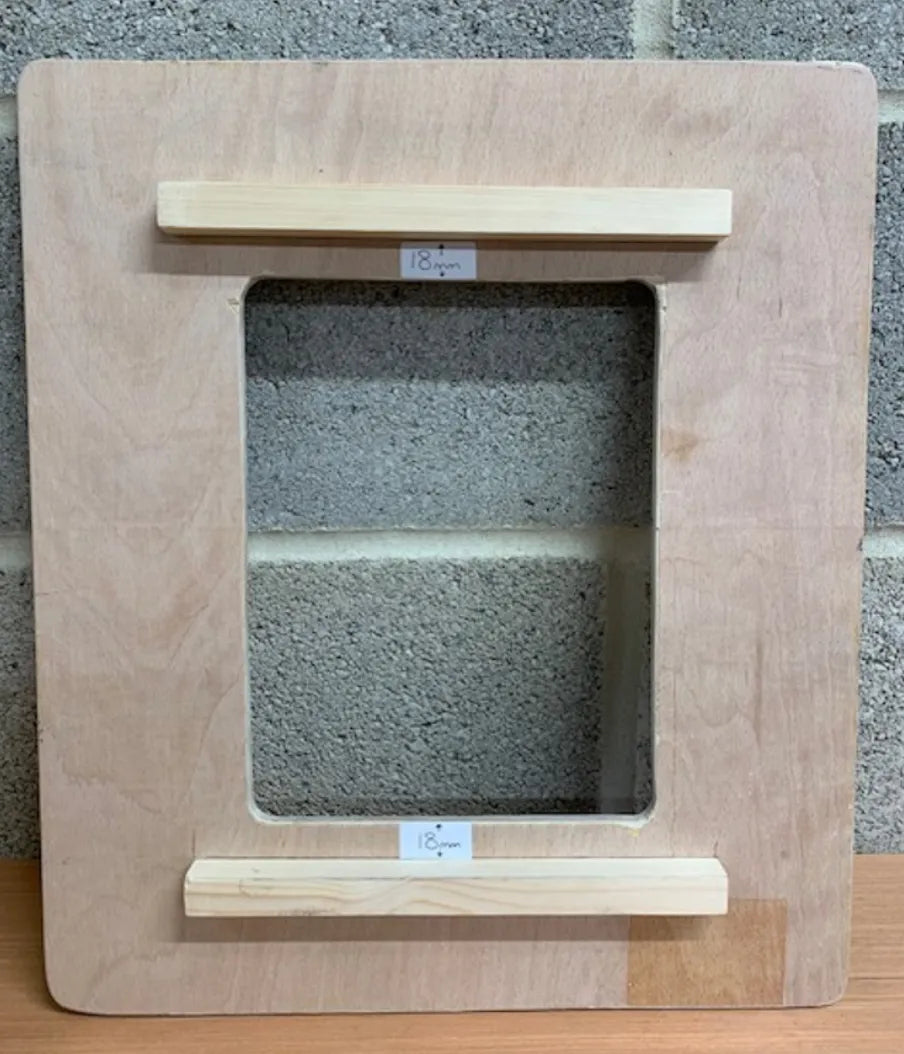

4. 4. Preparation for fitting

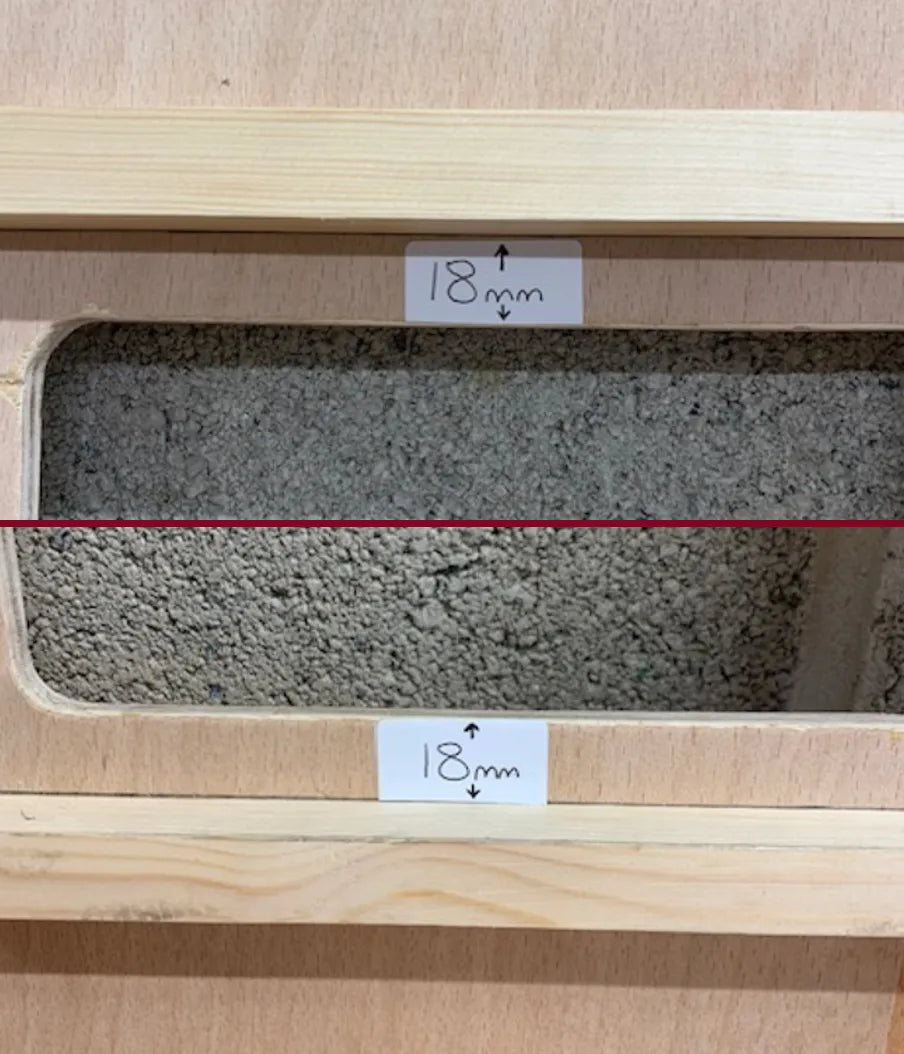

5. 5. Overlap Zoomed

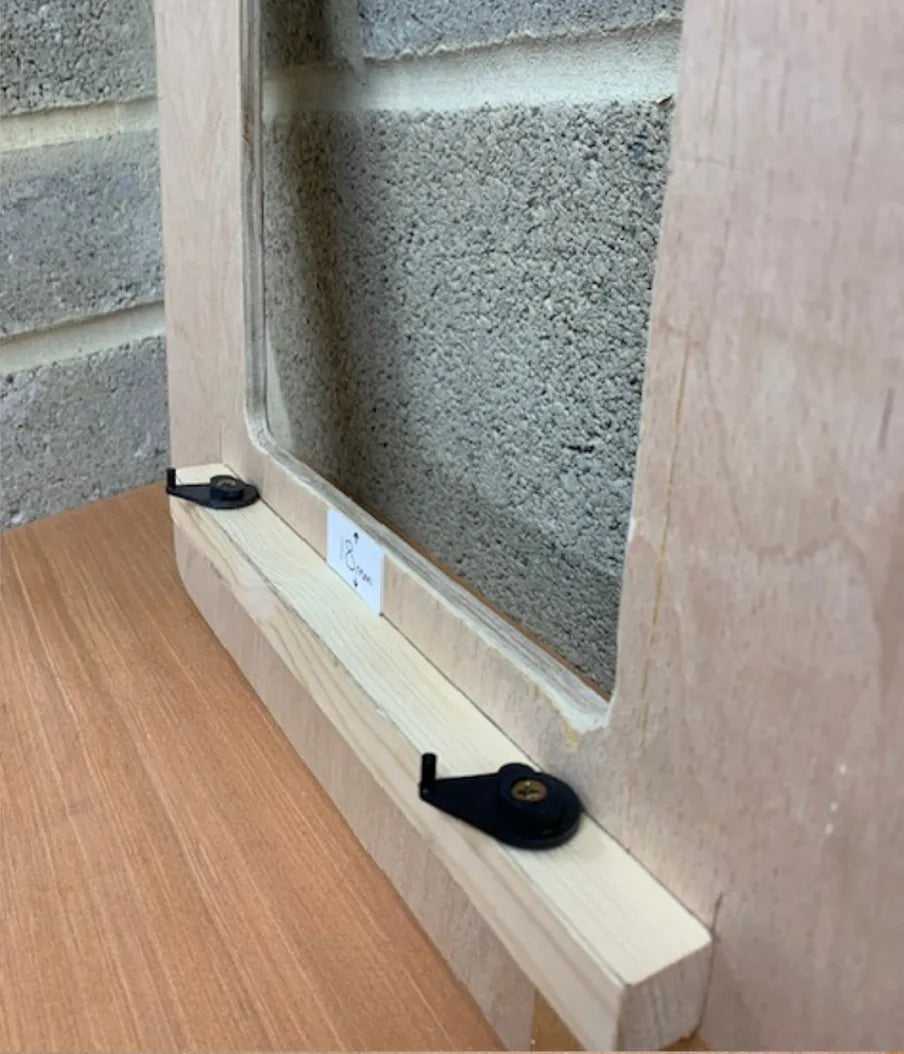

6. 6. Fitting the blinds to the batons

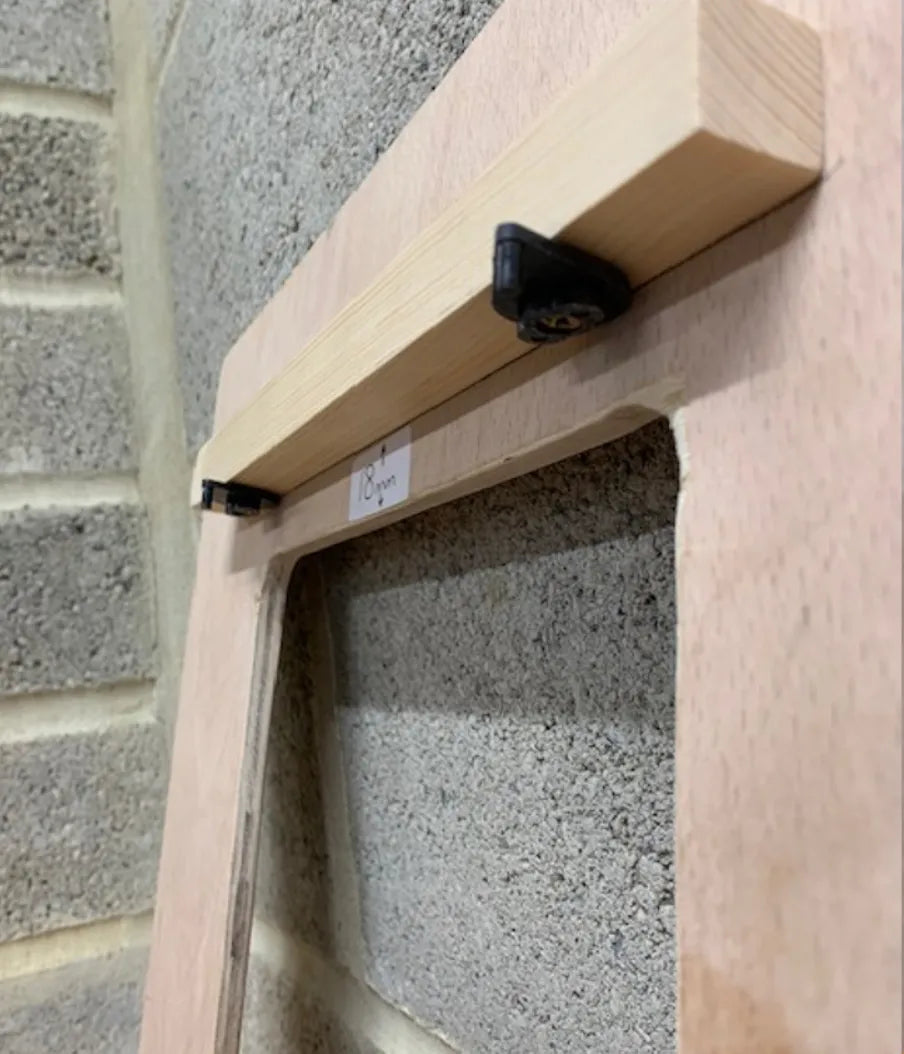

7. 7. Fitting blinds to batons (cont).

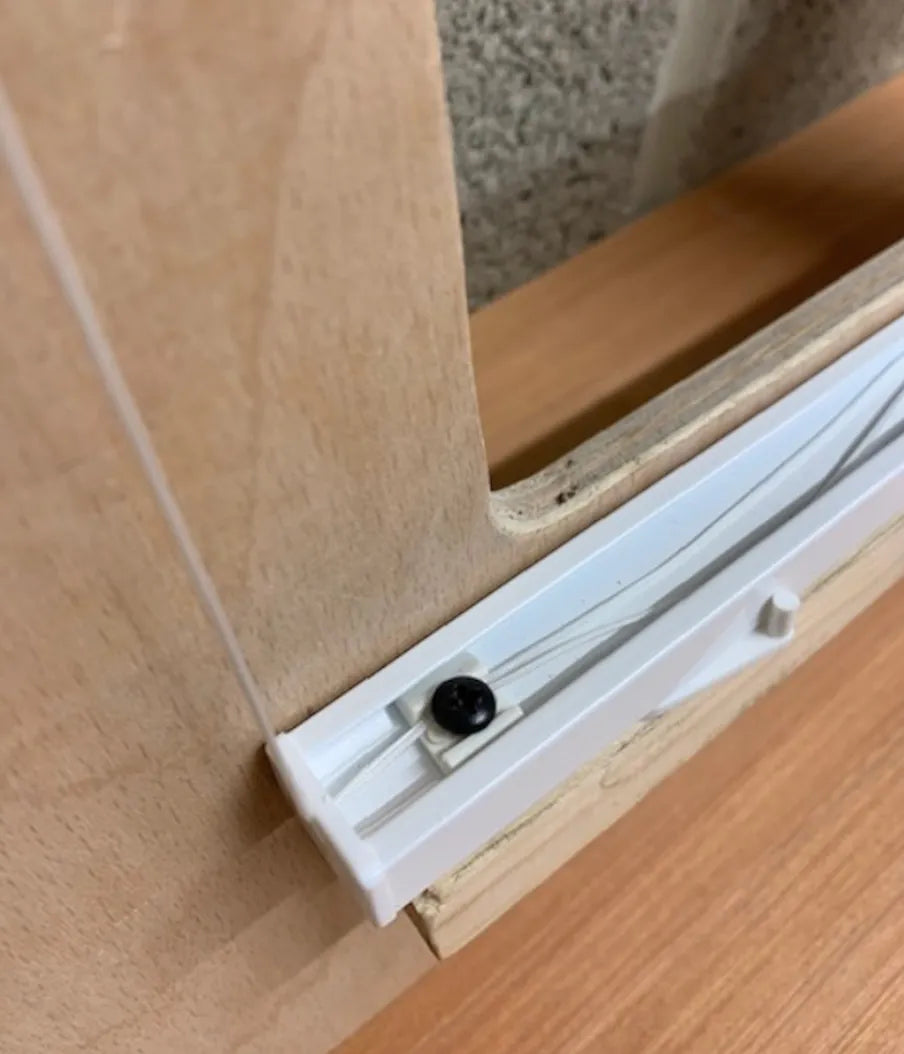

8. 8. Attach to Swivel Brackets

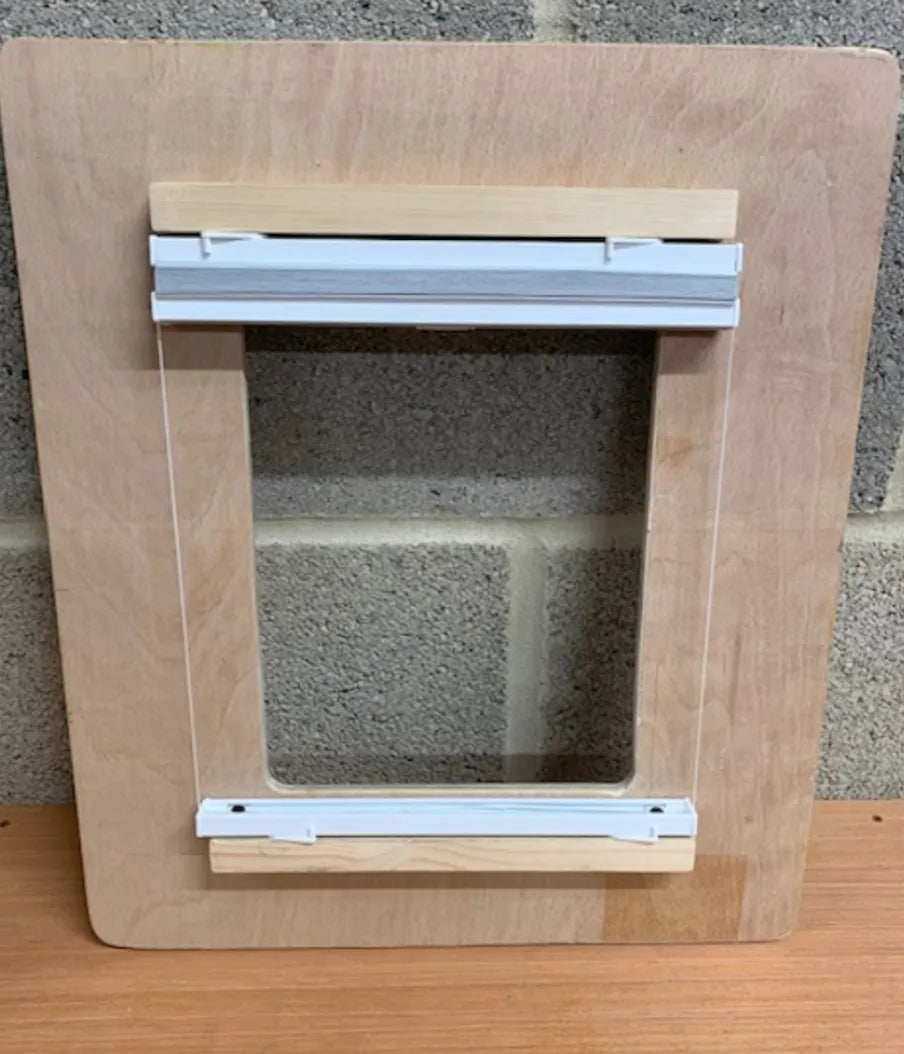

9. 9. Tensioning

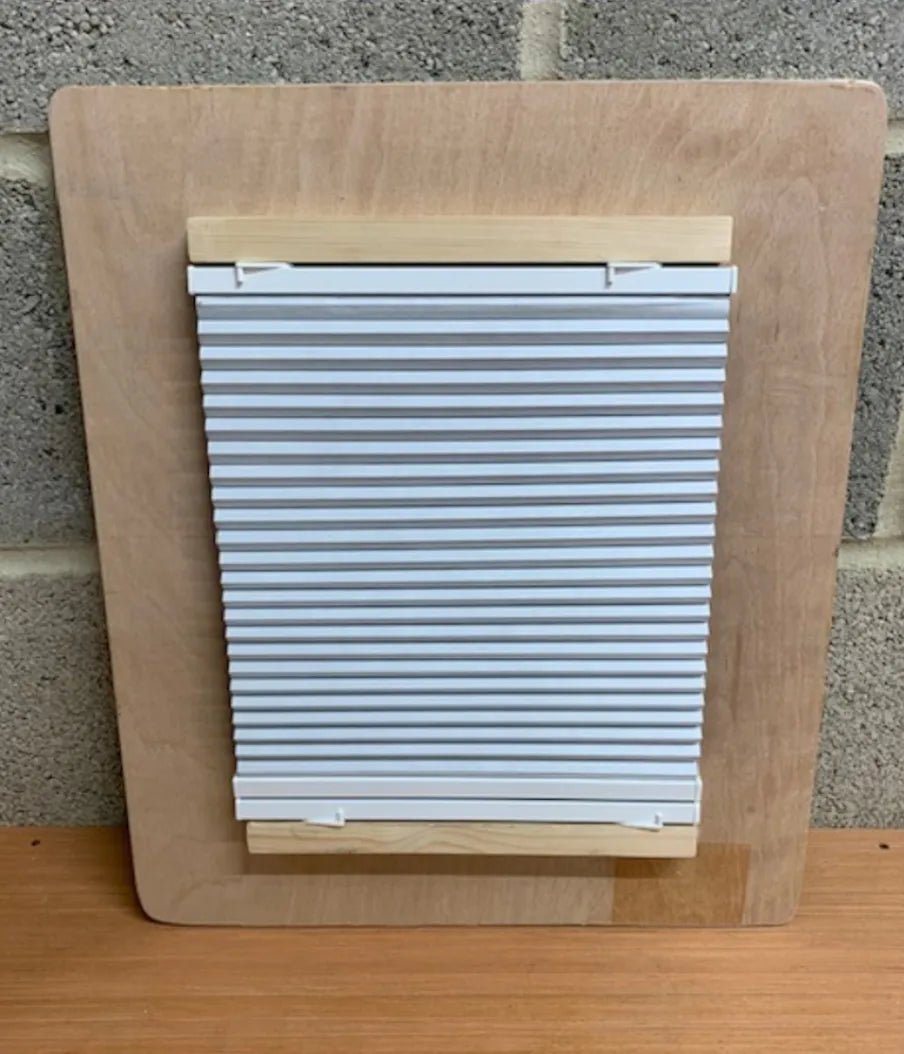

10. 10. Final adjustments
